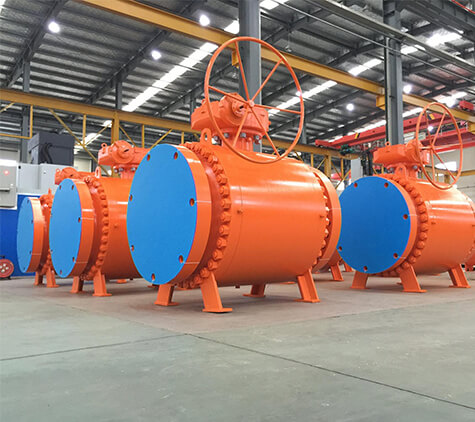

Trunnion Mounted Side & Top Entry Ball Valves
Valvemark delivers extensive expertise in supplying Trunnion Mounted, Side & Top Entry Ball Valves, available in both Soft and Metal Seated configurations for critical applications.
Size Range
2” - 56“
Pressure
Up to 2500#
Design
API 6D / 608
Special Design Features
- Cryogenic Design
- Subsea Design
- Stem Extension
- Single & Double Piston Seat
- Primary Metal / Secondary Soft Seat
- Emergency Sealant Injection
Operator / Actuator Options
Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
Technical Specifications
| Size Range | 2” up to 56“ (DN 50 up to DN 1400) |
|---|---|
| Pressure Rating | ASME 150# to 2500#, API 3000PSI to 20000PSI |
| Design Standard | API 6D, API 608, MESC SPE 77 / 130 API6DSS, MESC SPE 77/210 |
| Pressure / Temp Rating | ASME B 16.34 |
| Test Standard | API6DSS, API 598, API 6D, ISO 5208, MESC SPE 77/132, 77 / 300, 77/312, 77/200, 77/210, API 6FA, ISO 10497, API607, ISO 15848-1&2, BS 6364 |
Material Selection & Construction
Our valves are available in a wide range of materials to suit various corrosive and non-corrosive environments.
Standard Materials
- Carbon Steels
- Low Temperature Carbon Steel
- Martensitic Steels
- Austenitic Stainless Steel
Exotic Alloys
- Duplex & Super Duplex Stainless
- Nickel Alloys & Inconel
- Titanium Alloy
- Hastelloy & Nickel Aluminum Bronze
Construction Details
Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated
End Connections: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
