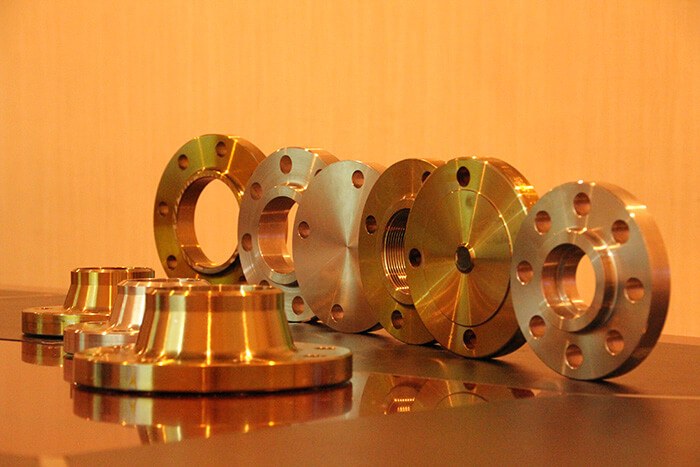

Industrial Flanges
Valvemark supplies extensive range of flanges in carbon steel and stainless steel in all grades and sizes.
Available Grades
- C.S – High / Low temp Stainless Steel
- 1/4″ – 36″ - A105/A350 LF2/A694 F52
- Alloys/CS/SS-High Temp/Low temp
- SS-A182 F321/F347 etc.
Specifications
| Types | Weld Neck, Slip On, Socket Weld, Lap Joint, Threaded, Blind, Reducing and Spectacle Plate |
|---|---|
| Dimensional / Tolerance Standards | ASME, ANSI B16.5, MSS SP-44 B16.47A, API 605 B16.47 B, DIN, AWWA |
| Size Range | 1/2” to 48” |
| Pressure Rating | #150, #300, #600, #900, #1500 & #2500 |
| Wall thicknesses | From schedule S-10 to S-XXS |
| Materials | ASTM A105, A182 Gr. F304/L, F316/L, A350 LF2, A694-F42 to F70 (Other Grades available on Request) Galvanizing (Electro or Hot Dip) can be provided Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request |
| Coatings | Special Coating i.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped & Electro-Plating) etc. can be provided |
